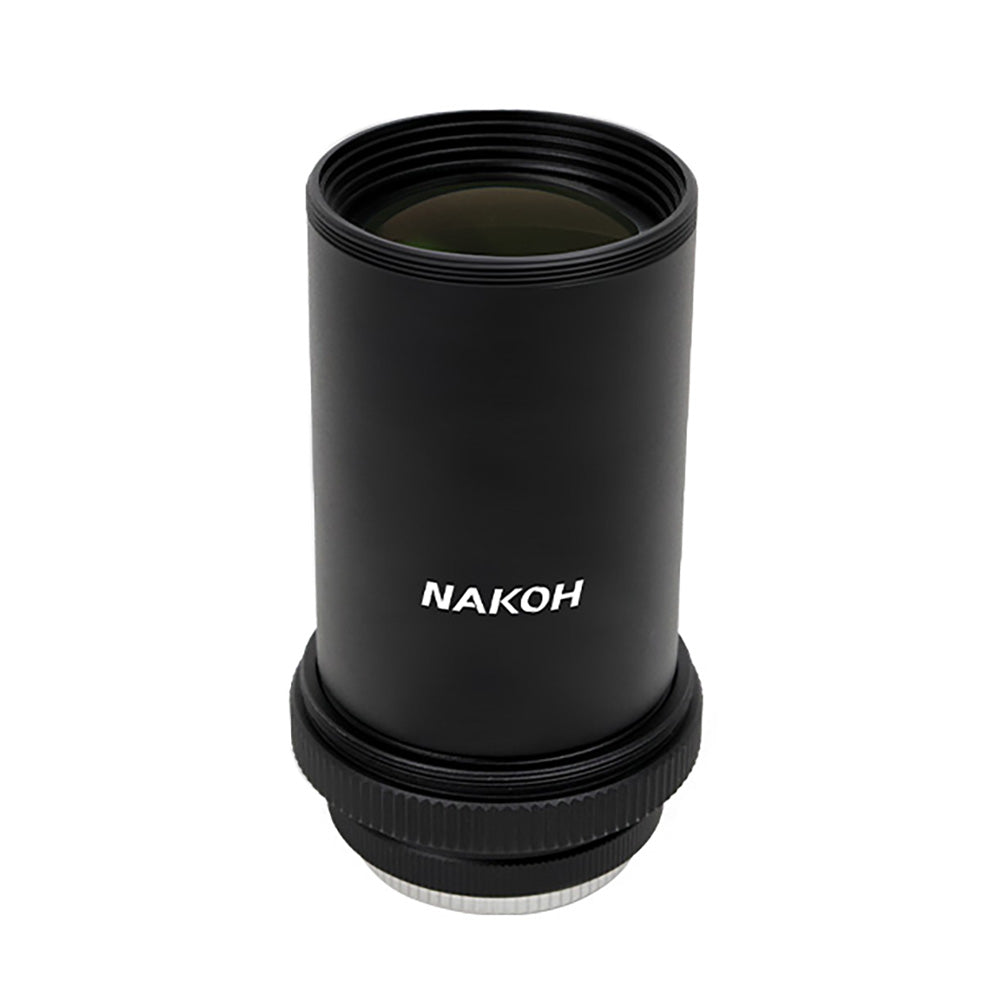

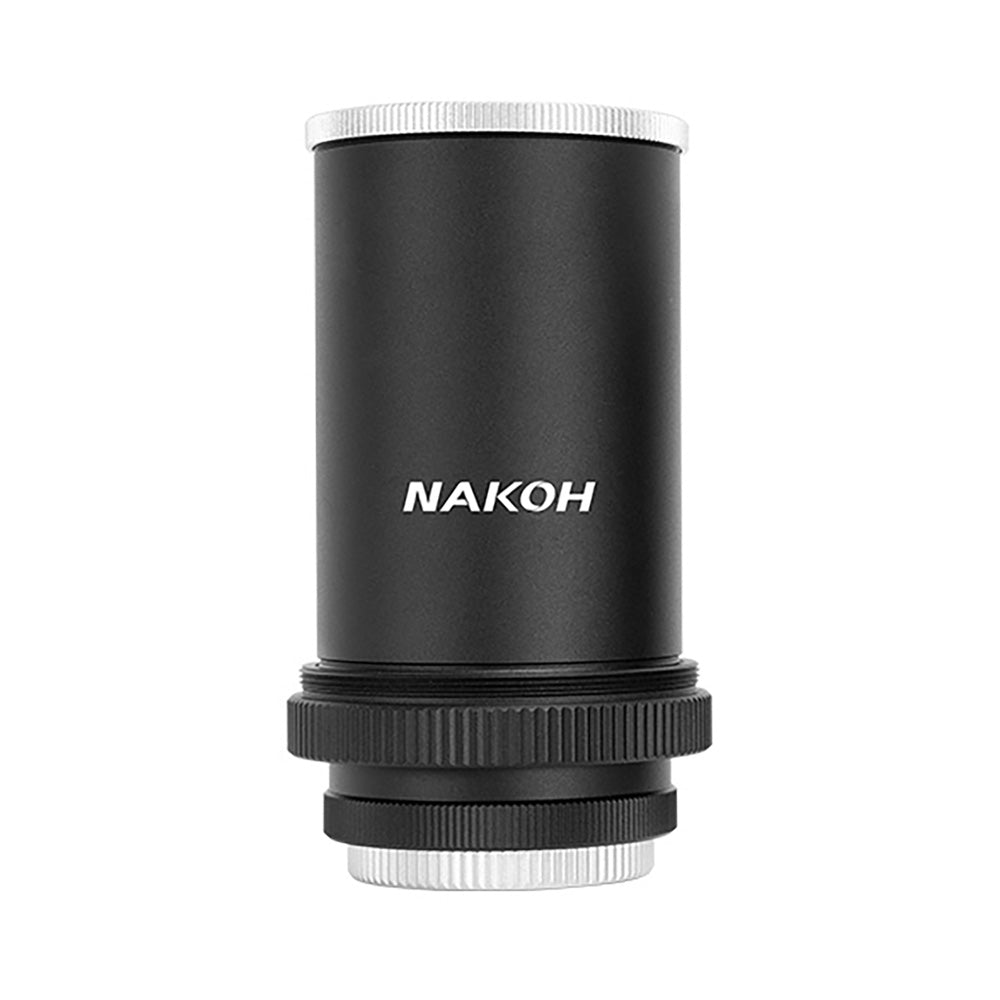

NAKOH 60GT 0.65x REDUCER
NAKOH 60GT 0.65x REDUCER is not in stock but it can be backordered.
The NAKOH 0.65x Flattener/Reducer for the 60GT is a triplet corrector with a large 44mm image circle, compatible with full frame sensors. The 0.65x reduction factor shortens the telescope's focal length to 234mm and focal ratio to f/3.9, dramatically increasing the field of view while correcting off-axis aberrations for imaging.

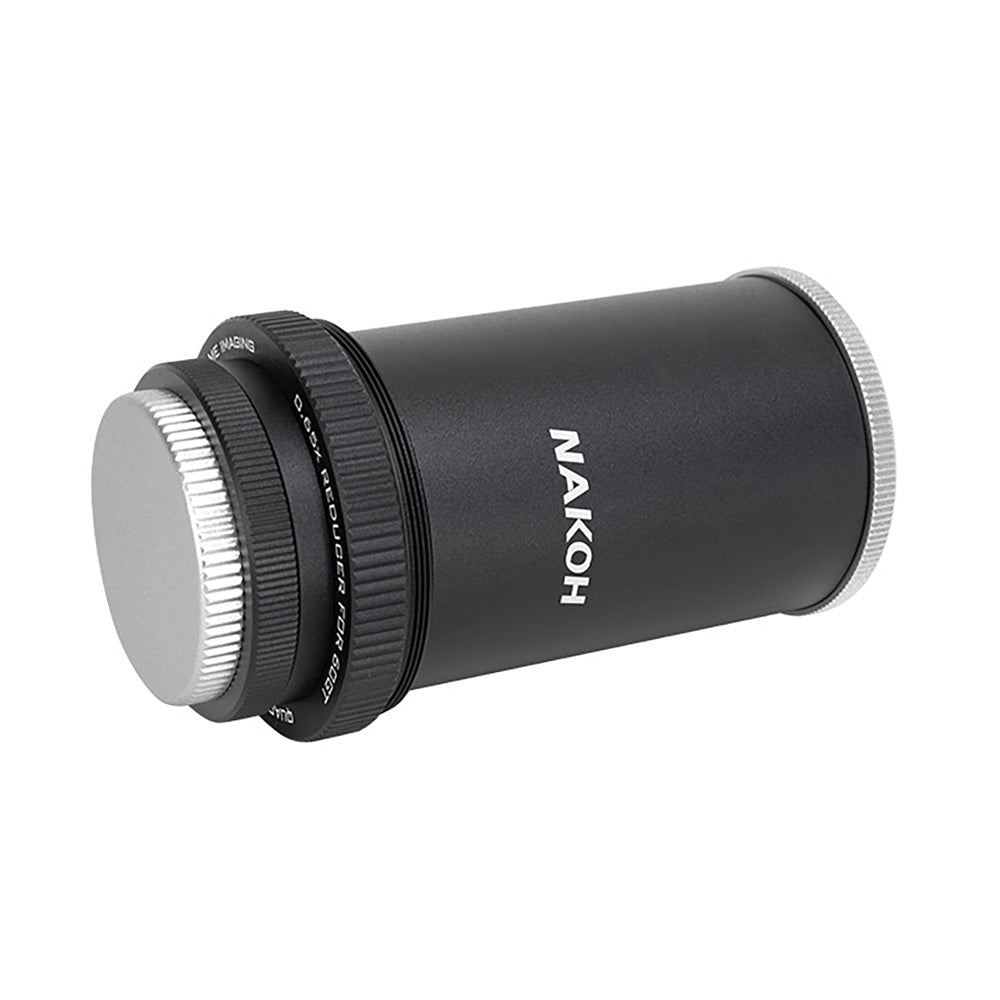

The reducer has a backfocus requirement of 55mm, making it straightforward to connect common imaging trains. Both M48 x 0.75 and M54 x 0.75 camera-side thread adapters are included, allowing full-frame cameras to be connected with minimal vignetting. An internal M48 x 0.75 thread allows you to attach standard 2" filters. CNC-machined metal threaded end caps protect the optics of the reducer when not in use.
Specifications
| Reduction factor | 0.65 x |
|---|---|
| Telescope connection | M68 x 1 |
| Camera connection | M54 x 0.75, M48 x 0.75 (with built-in 2" filter thread) |
| Image circle | 44 mm |
| Backfocus distance | 55 mm |
| Weight | 580 g |
| SKU | NA-60GT-0.65xRED |
Gallery
M45 | NAKOH 60GT + 0.65x Reducer + ZWO ASI2600MC Pro
