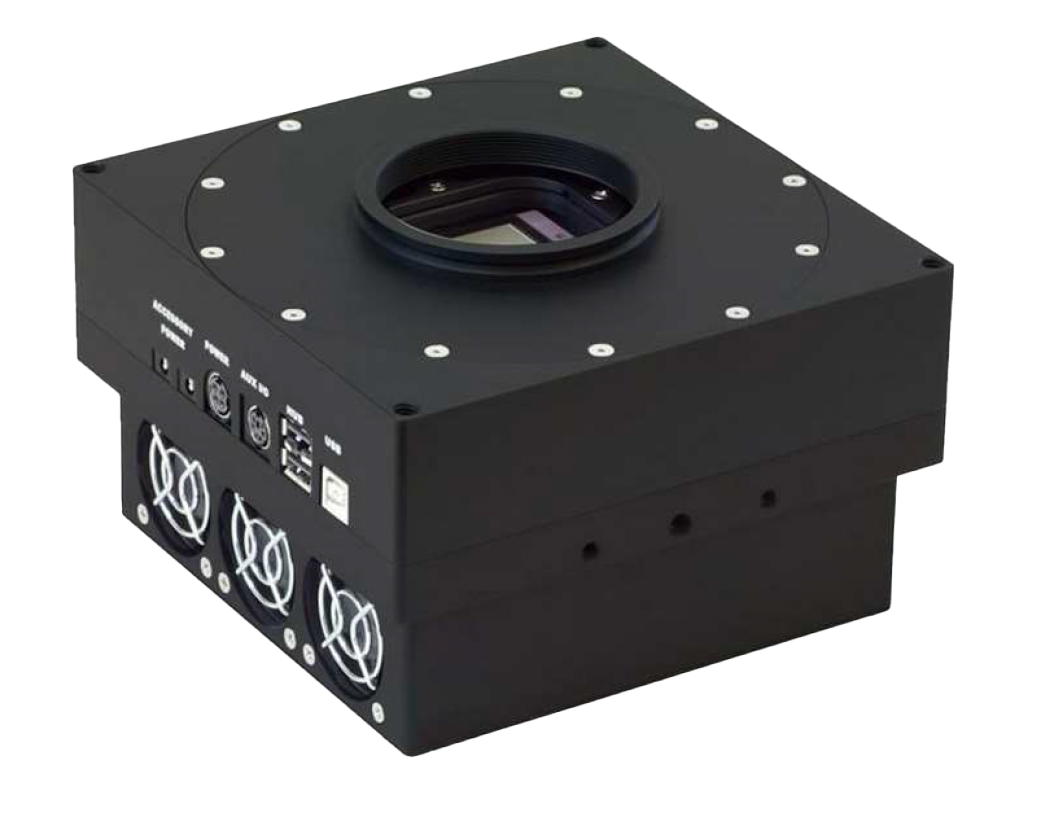

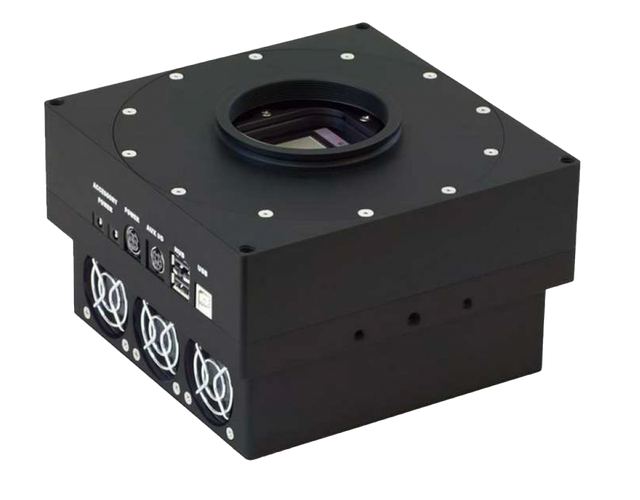

FLI PROLINE PL4240MB CCD [MONO]

The FLI ProLine PL4240 MB Mono is a high performance cooled monochrome astronomy camera using the Teledyne e2v CCD42-40-1-368 midband back-illluminated CCD sensor with a resolution of 2048 x 2048 pixels at 13.5μm. The 39.1mm diagonal field of view and large pixels make it an ideal match for long focal length telescopes such as PlaneWave CDKs and RCs.

The PL4240's giant pixels, field of view and low noise make it an exceptional choice for critical low-light imaging applications. Like all FLI cameras, the PL4240 is designed for 24/7 operation, making it ideal for professional remote observatories where reliability is paramount.

The PL4240 is available with a 65mm mechanical shutter as standard. With a peak quantum efficiency of 96%, large full well capacity of 100,000e- and dynamic range of 79.7dB, the PL4240 is one of the most sensitive cameras on the market.

The regulated thermoelectric air cooler is capable of cooling the CMOS sensor to approximately 60°C below ambient temperature. The sensor temperature is regulated with ±0.1 °C precision. High temperature reduction and precision regulation ensure very low dark current for long exposures and allow proper image calibration. ProLine series cameras are also plumbed for liquid circulation, further increasing cooling capabilities (external liquid circulation connectors sold separately).

The PL4240 features a USB 2 port for fast image transfers, with 500 kHz and 2 MHz digitization rates at 16-bits.

Specifications
