FLI COLOUR FILTER WHEEL CFW8-8SQ
FLI COLOUR FILTER WHEEL CFW8-8SQ is not in stock but it can be backordered.

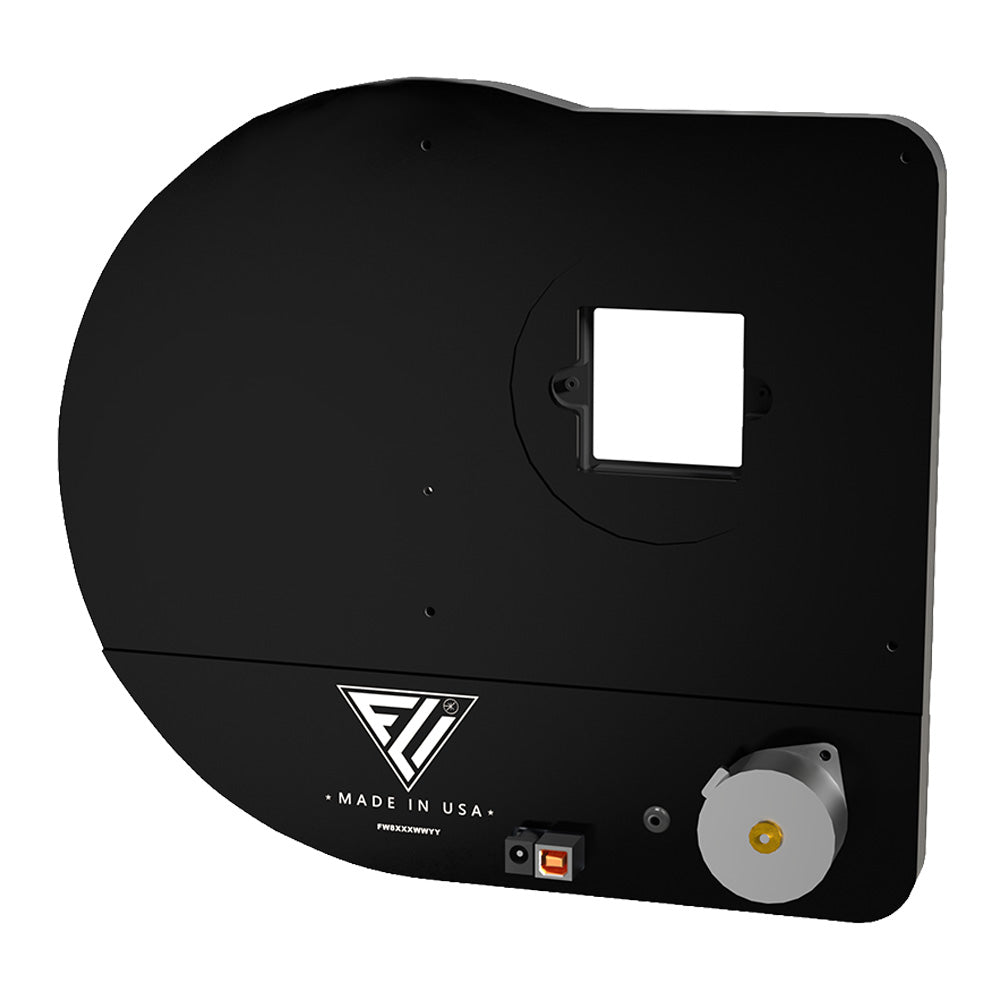

The FLI CFW8-8SQ is a motorized filter wheel for FLI cameras and supports 7 x 50mm square unmounted filters plus 1 blocked position for capturing dark frames.
The CFW8-8SQ has an optical thickness (not including the motor) of 18.6mm and weighs 1.8 kilograms. Unmounted filters between 3 - 5mm thick can be fitted.
FLI color filter wheels are engineered for reliable performance, ideal for harsh or remote environments. Each wheel features a proprietary no-slip drive chain, a precision stepper motor, and a large-diameter pivot pin paired with precision-ground bushings - delivering smooth, quiet, and dependable operation. And because FLI filter wheels do not use internal lights for homing, your images remain fully protected from stray light interference.
FLI CFW filter wheels are controlled via a USB type-B cable and powered using the included 12V power supply.
Specifications
| Compatible filters | 7 x 50 mm square unmounted |
|---|---|
| Connectivity | USB 2 Type-B, DC barrel jack |
| Power supply | 12V DC |
| Optical thickness | 18.6 mm |
| Camera connection |
4 x M4 x 0.7 bolts |
| Telescope connection | 4 x M4 x 0.7 bolts |
| Weight | 1.80 kg |
