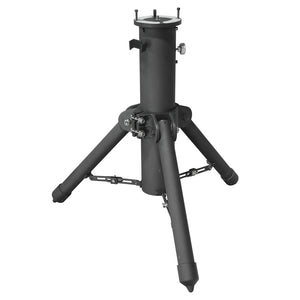

The iOptron heavy duty Tri-Pier 360 is designed for CEM120 mount. It combines the strength and stableness of a pier with the levelling flexibility of a tripod. Made of 1/4 inch thick aluminium alloy and CNC machined legs with adjustable feet.

The newly redesigned version is much lighter and smaller but just as stable as the old model.

The Tri-Pier 360 can also be used for the following mounts, directly or with an adapter:

CEM60 (need Center Post P-8037-CP);
iEQ45 Pro/iEQ45 (need Center Post P-8037-CP);
AZ Mount Pro/MiniTower/MiniTower Pro (need Star Knobs with Center Post 8340-PIER)
Paramount MyT (no adapter needed)
Takahashi (EM-200), SkyWatcher (HEQ5/EQ6/NEQ6/AZEQ6), Celestron (CGEM/CGEM-DX), Orion Atlas (EQ-G/AZEQ-G) ( need Tri-Pier adapter 8036-TK)
Astro-Physics 400/600E/Mach1GOTO (need Tri-Pier adapter 8036-AP)
ZEQ25/CEM25 (need Tri-Pier adapter 8036-25)

Specifications

Max payload	165 kg (360 lbs)
Pier weight	13.9 kg (31 lbs)
Material	Aluminium alloy, CNC machined, anodized
Pier diameter	150 mm
Pier wall thickness	5 mm
Pier top plate	210 mm x 210 mm
Adjustable height	860 - 1020 mm
Uneven ground range	51 mm
Leg maximum spread	Ø 1150 mm
Pier dimensions folded	Ø 240 x 820 mm
Warranty	One year limited
SKU	IO-8037A
