BAADER LRGB CMOS-OPTIMIZED FILTERS

$479.00AUD
SKU: BA2961610

Baader Planetarium

Size



The new Baader CMOS-optimized LRGB filters are designed to work very well with modern highly-sensitive astronomy cameras and telescopes with focal ratios between f/15 to f/1.8. With excellent halo and reflection control, these filters set the new standard for monochrome astrophotography with CMOS sensors.

Baader's RGB filters have high transmission and are balanced across each colour channel, so you don't have to calculate individual exposure times for each filter. The Luminance UV/IR blocking filter has 98% transmission over the entire visible spectrum.





Baader LRGB filters - advantages

  • Very high contrast due to steep edges of the coating
  • Reflex-Blocker coatings to minimize reflections caused by correctors, reducers and other optical elements
  • Standardized thickness for maximum possible parfocality - less need to refocus due to different filter thicknesses
  • Blackened edges with front-side markings
  • Each filter is individually fine-polished and coated with sealed coating edge, preventing moisture ingress
  • Life-Coat for hardness and age-resistance, making the filters able to withstand tougher conditions for longer



For more information on Baader's new generation of CMOS-optimized filters, check out this blog post!

Specifications



Transmission range
 L - 420 – 685 nm, R - 595 – 690 nm, G - 490 – 580 nm, B - 400 – 510 nm
Central wavelength
 LRGB
Suitable for f/ratio f/15 to f/1.8
AR-coating
 Reflex-Blocker hard coated, planeoptically polished
Filter thickness 1.25", 2", 31 mm, 36 mm 2 mm (without cell), 6 mm with cell
Filter thickness 50.4 mm, 50 x 50 mm, 65 x 65 mm 3 mm
Filter size 1.25", 31 mm, 36 mm, 2", 50.4 mm round, 50 x 50 mm square, 65 x 65 mm square

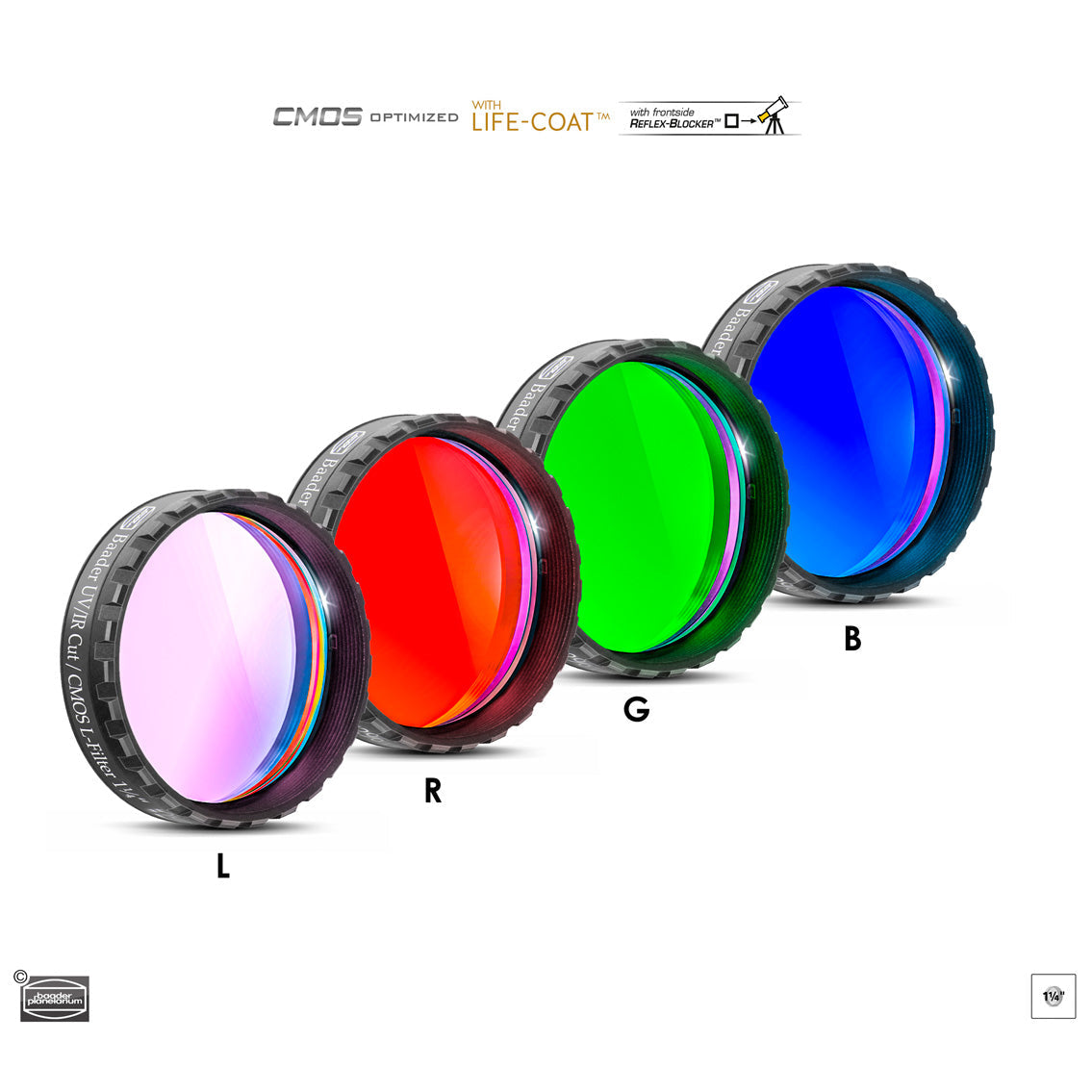

SKU 1.25" BA2961610

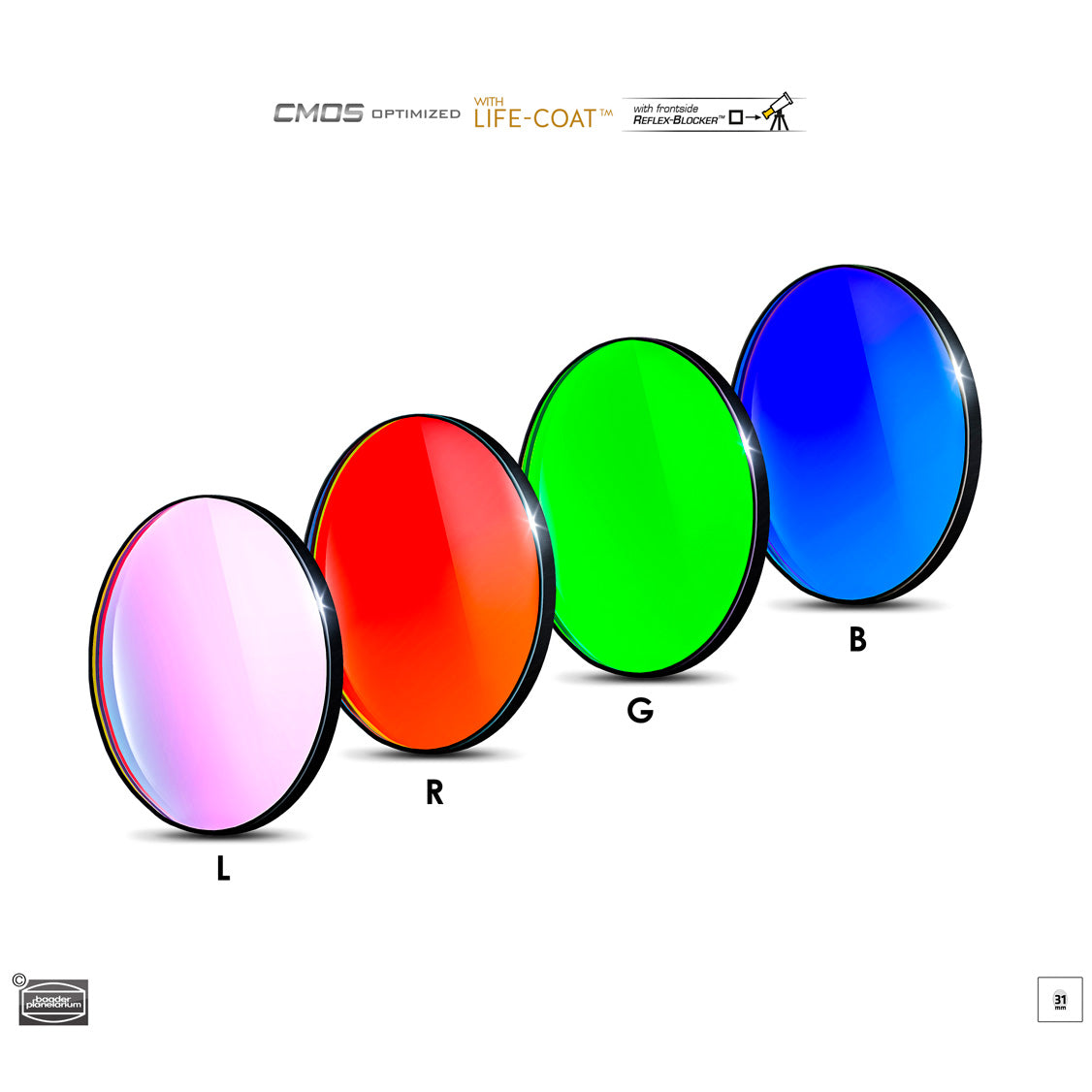

SKU 31 mm BA2961611

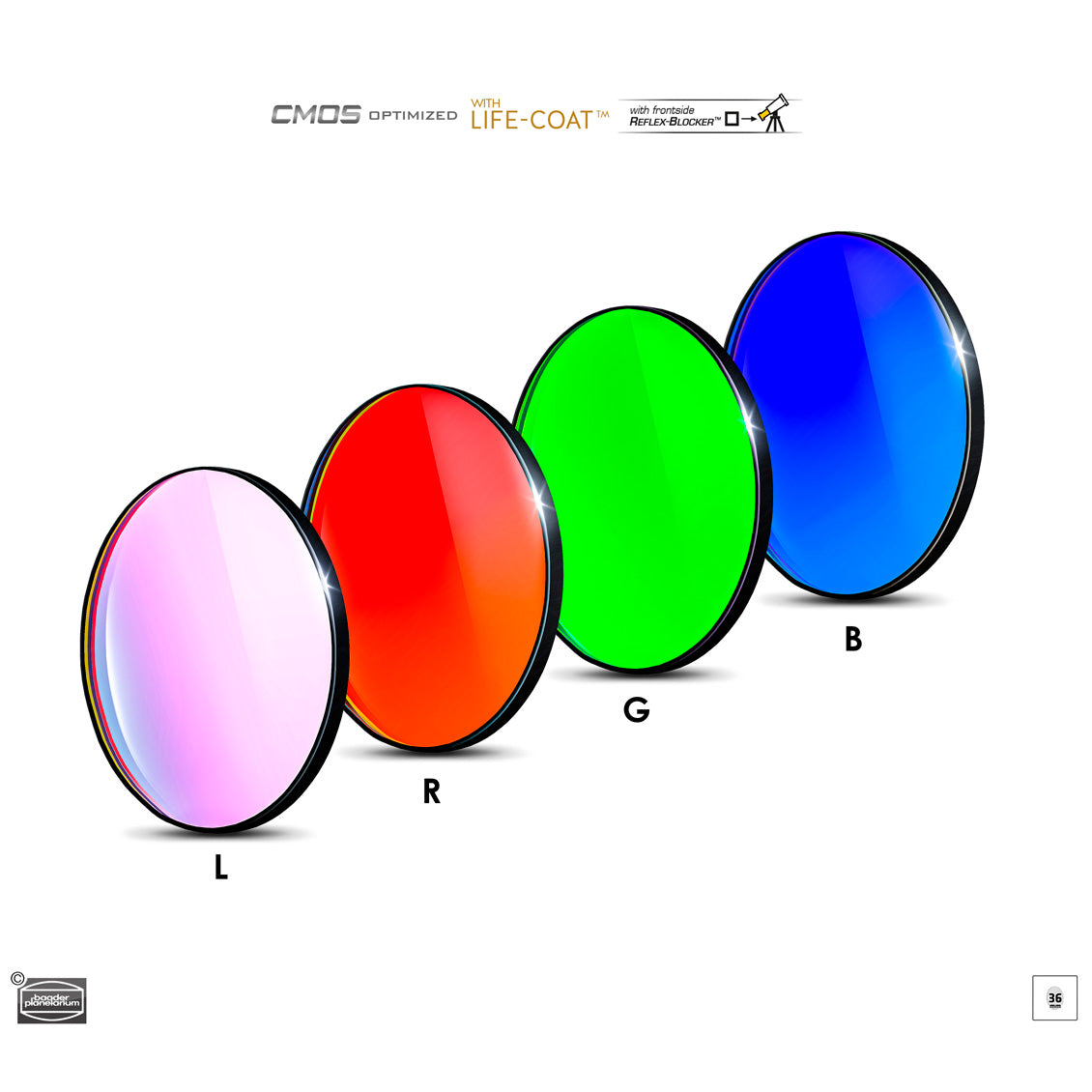

SKU 36 mm BA2961612

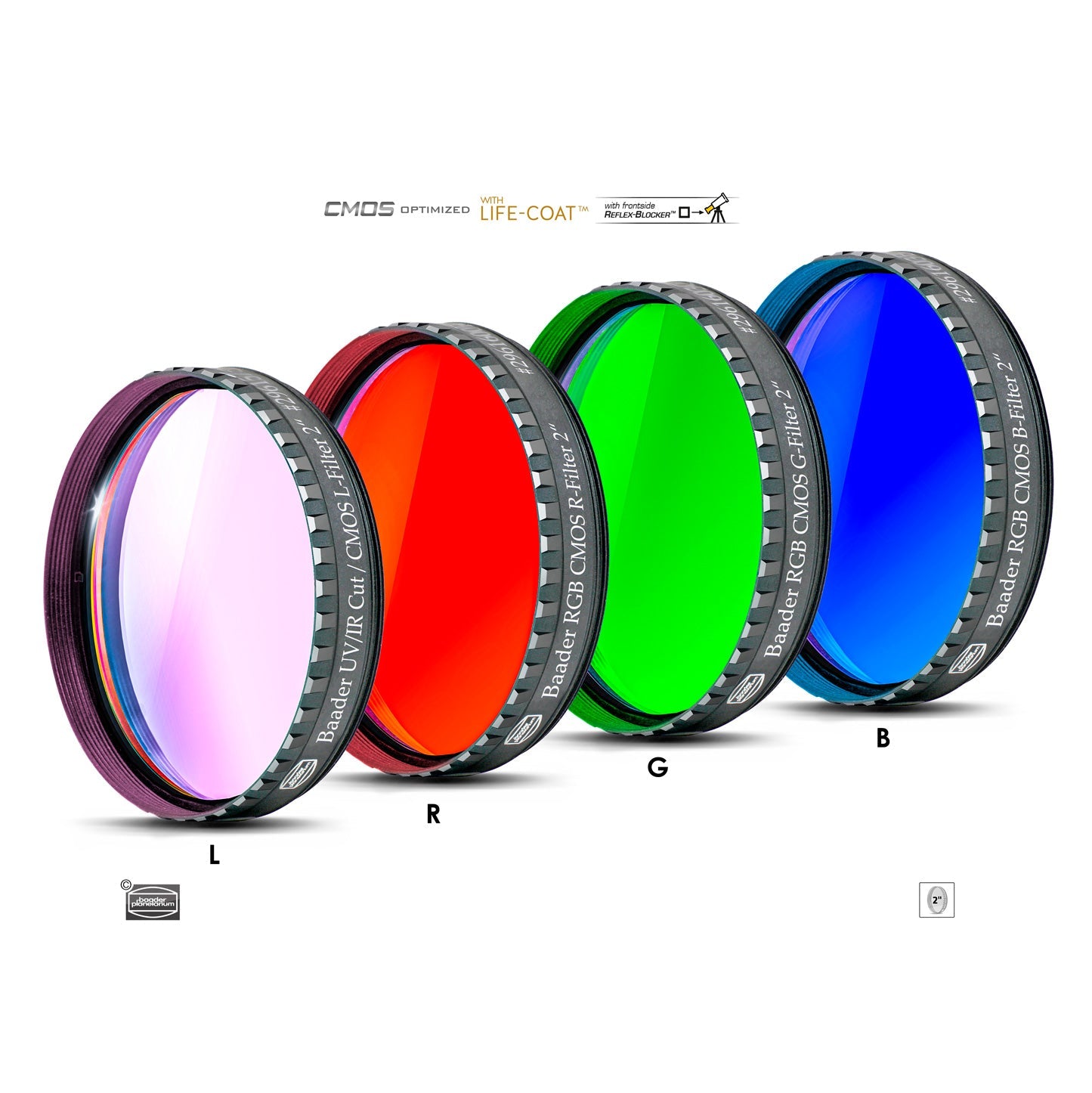

SKU 2" BA2961613

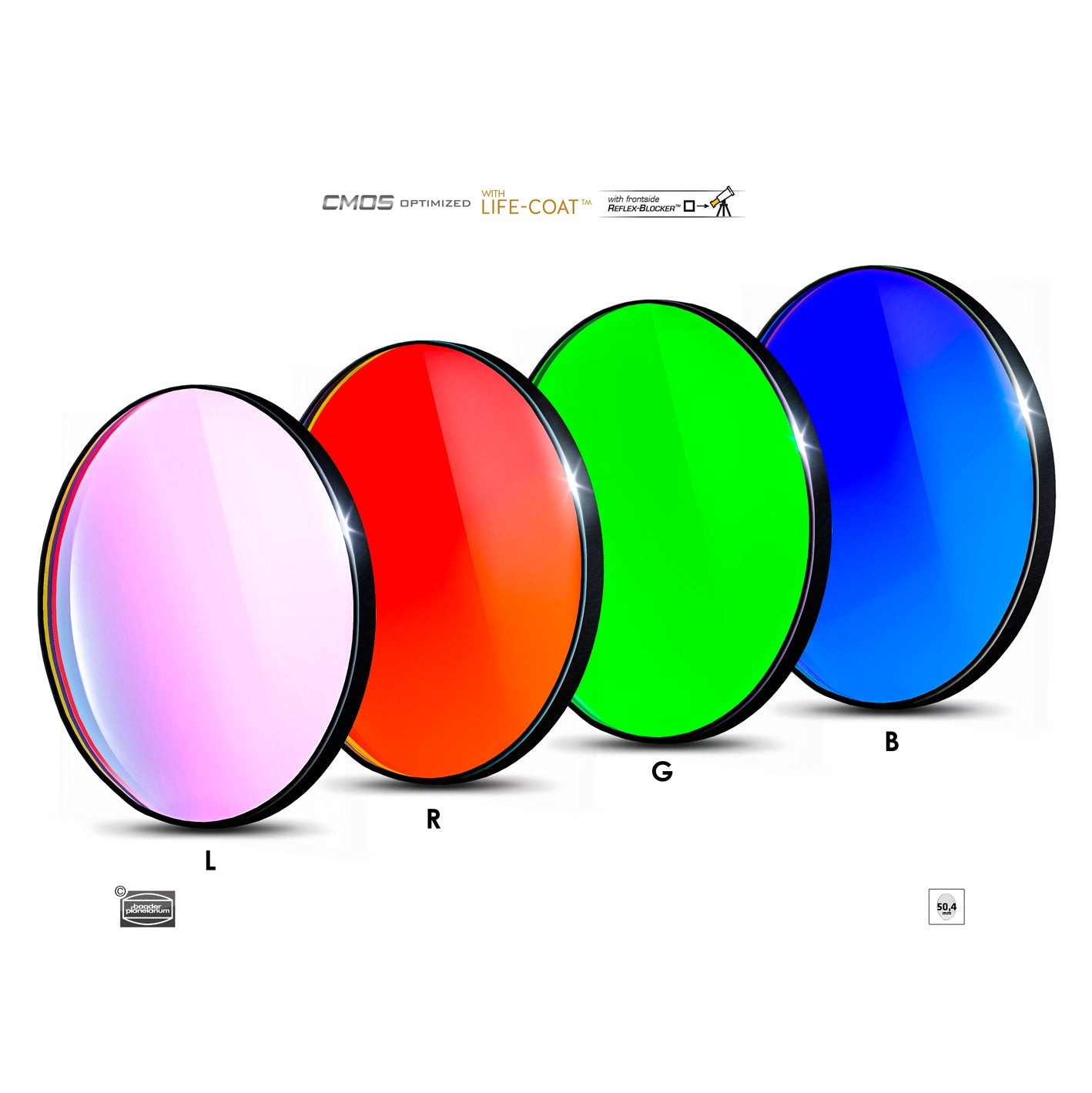

SKU 50.4 mm round BA2961614

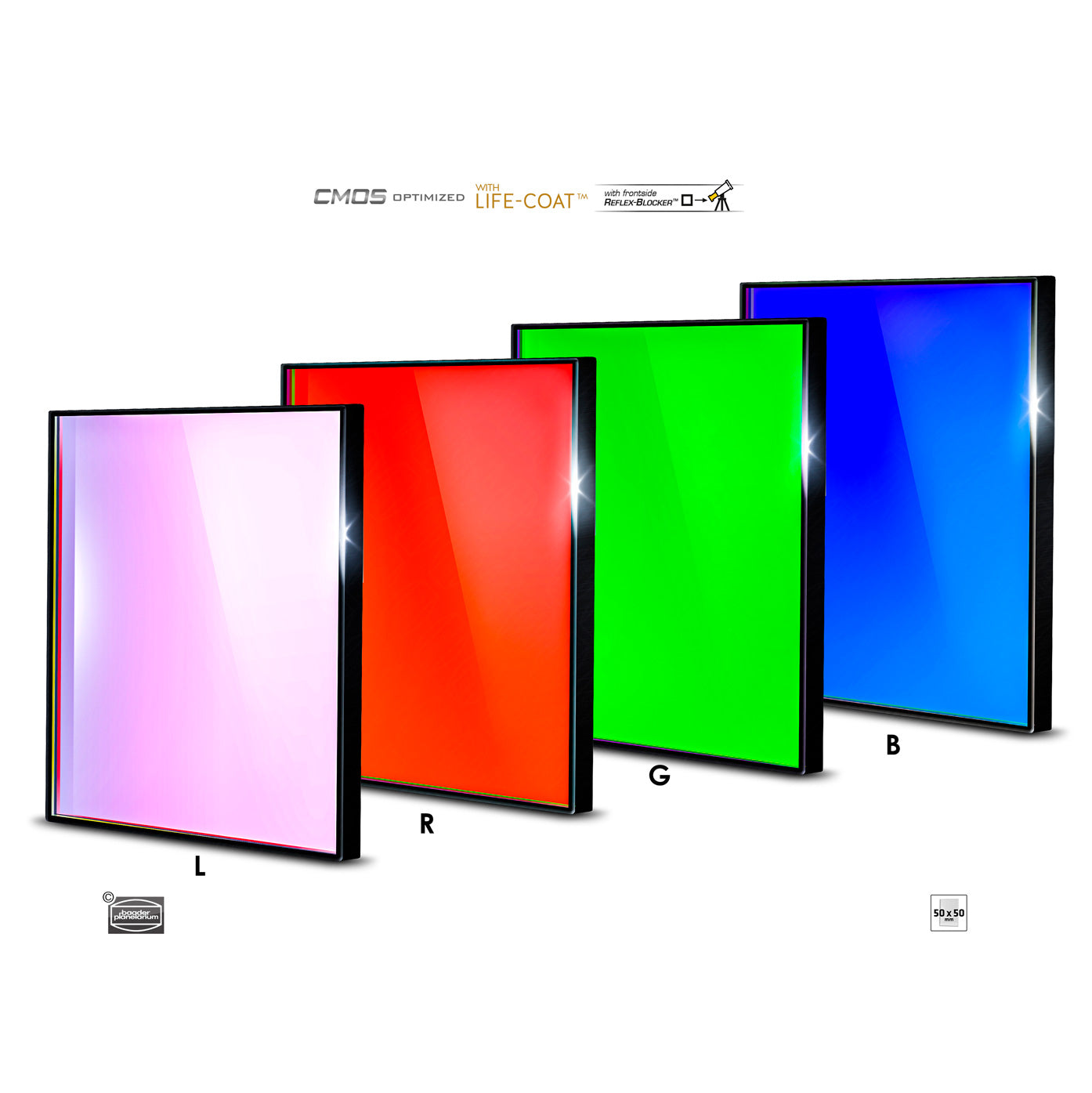

SKU 50 x 50 mm BA2961615

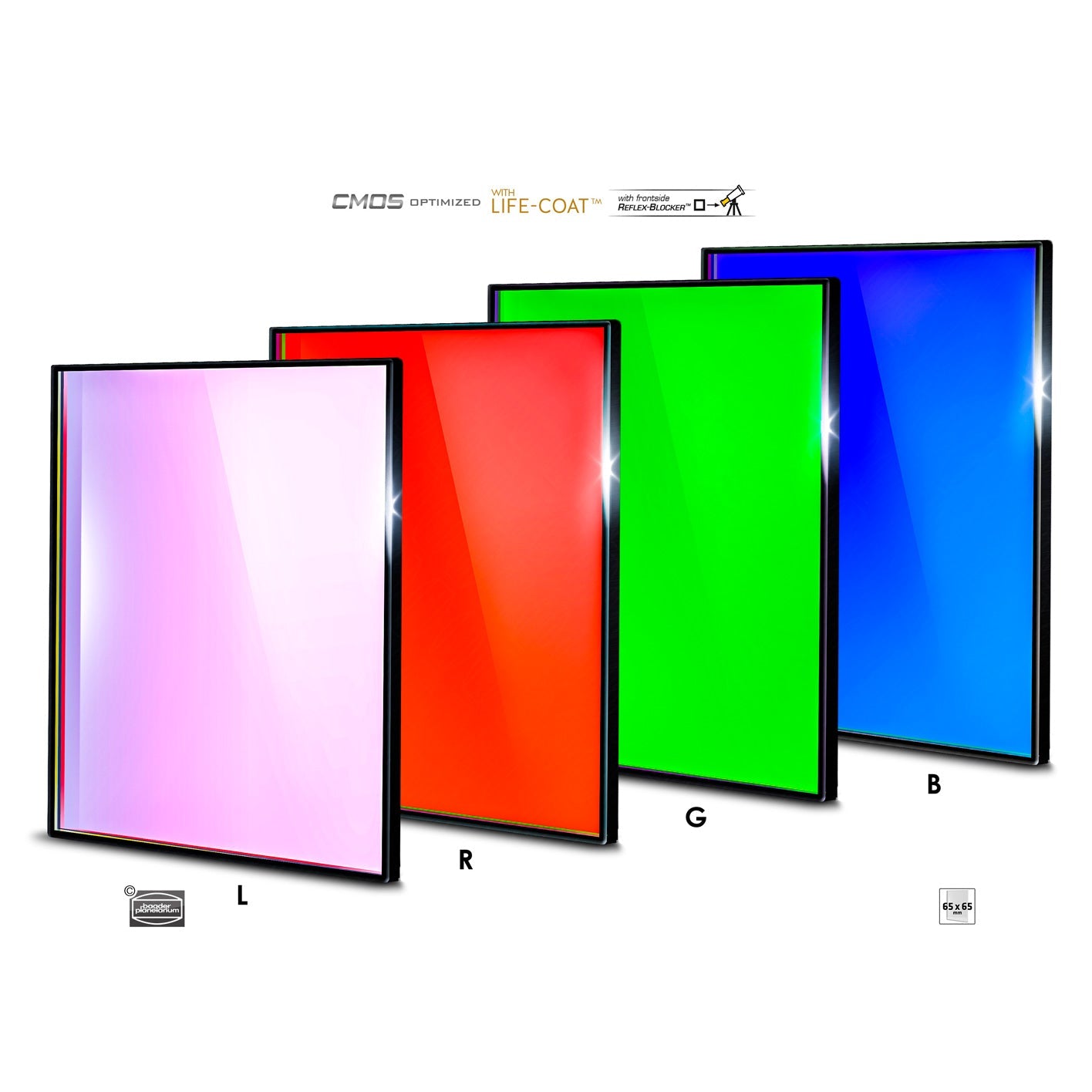

SKU 65 x 65 mm BA2961616
