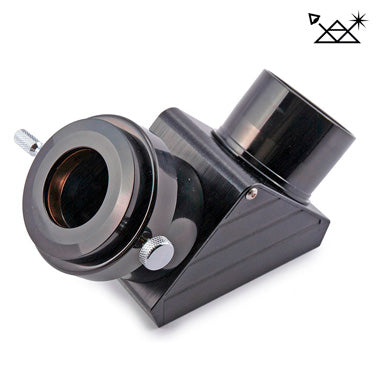

BAADER 2" AMICI ERECTING PRISM 90°

$50900AUD
SKU: BA2956152



The Baader 2" 90° Amici Erecting Prism is a high quality prism diagonal for low - medium magnification and terrestrial viewing with 2" eyepieces.

The Amici prism has anti-reflection multi-coatings for high contrast and stray light suppression. The removable 2" nosepiece is threaded for 2" filters .


Specifications



Optical design Amici erecting prism
Reflection surface AR multi-coating
Image orientation Erect image, non-reversed
Optical length
 99 mm with 2" barrel, 109 mm with additional 1.25" reducer
Deflection angle
 90 degrees
Clear aperture 38 mm
Connection telescope side
 2" barrel with M48 x 0.75 female thread
Connection eyepiece side
 2" clamp, 1.25" clamp
Weight 560 g
SKU BA2956152
Downloads



Baader Star Diagonals Baader Star Diagonals User Guide
