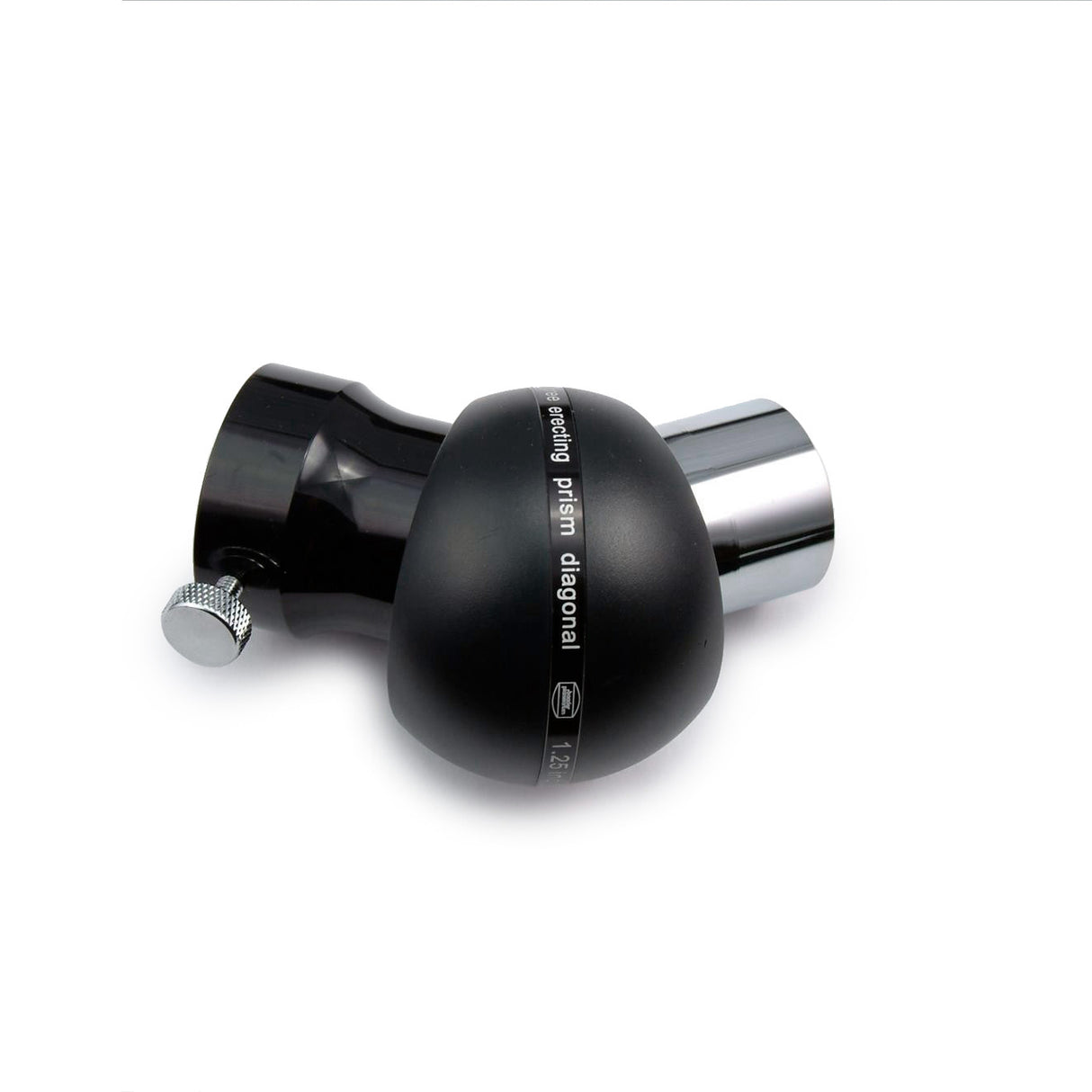

BAADER 1.25" AMICI ERECTING PRISM 45°

$14900AUD
SKU: BA2956150



The Baader 1.25" Amici Erecting Prism is a high quality prism diagonal for low - medium magnification and terrestrial viewing with 1.25" eyepieces.

Unlike most low-cost erecting prisms which only have 19mm of free aperture, the Baader 1.25" Amici prism has a much larger 24mm of free aperture. This makes it suitable for terrestrial observations at low magnifications.

The Amici prism has anti-reflection multi-coatings for high contrast and stray light suppression.


Specifications



Optical design Amici erecting prism
Reflection surface AR multi-coating
Image orientation Erect image, non-reversed
Optical length
 99 mm
Deflection angle
 45 degrees
Clear aperture 24 mm
Connection telescope side
 1.25" barrel
Connection eyepiece side
 1.25" clamp
Weight 160 g
SKU BA2956150
Downloads



Baader Star Diagonals Baader Star Diagonals User Guide
