ASKAR 0.6x REDUCER FOR 103APO
ASKAR 0.6x REDUCER FOR 103APO is a special order item. Contact us for more info.

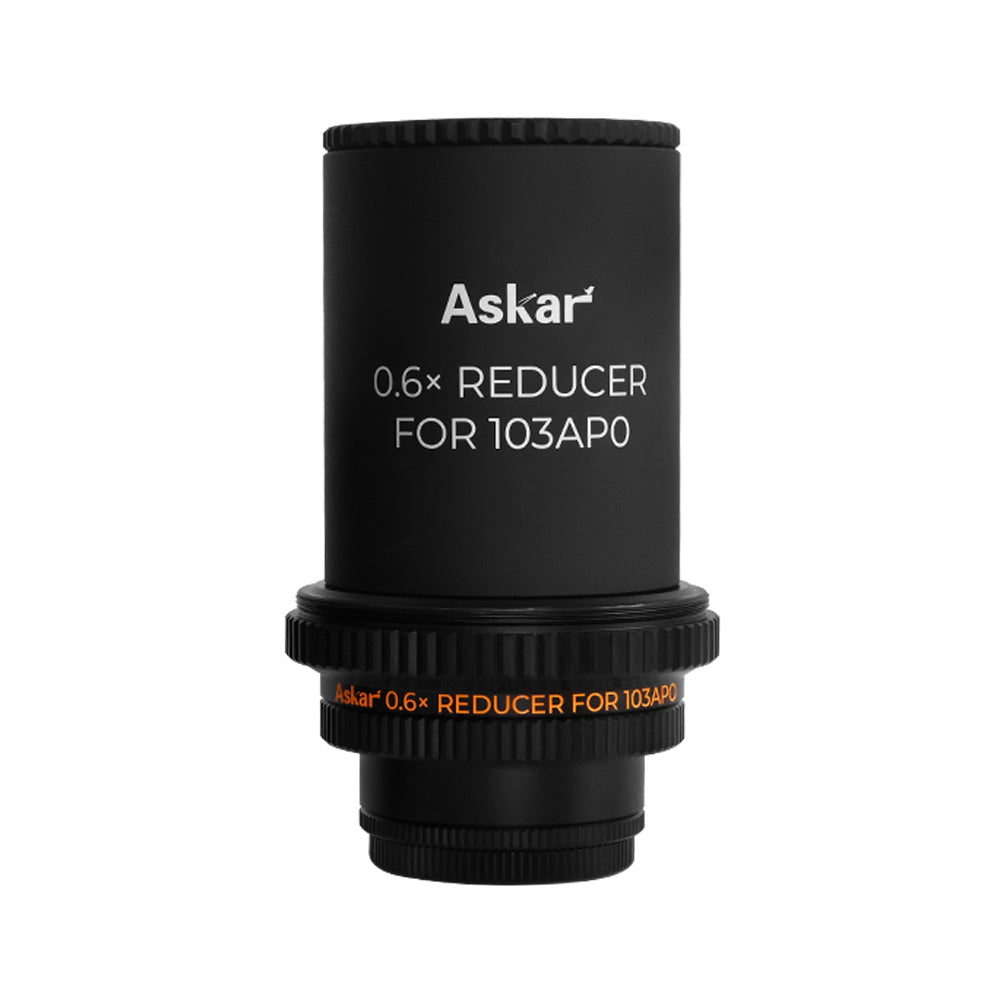

The 0.6x reducer for the ASKAR 103APO is a dedicated corrector which transforms the telescope into a super fast 420mm f/4.08 astrograph with a 44mm image circle. The working distance between the reducer and the sensor is 55mm.

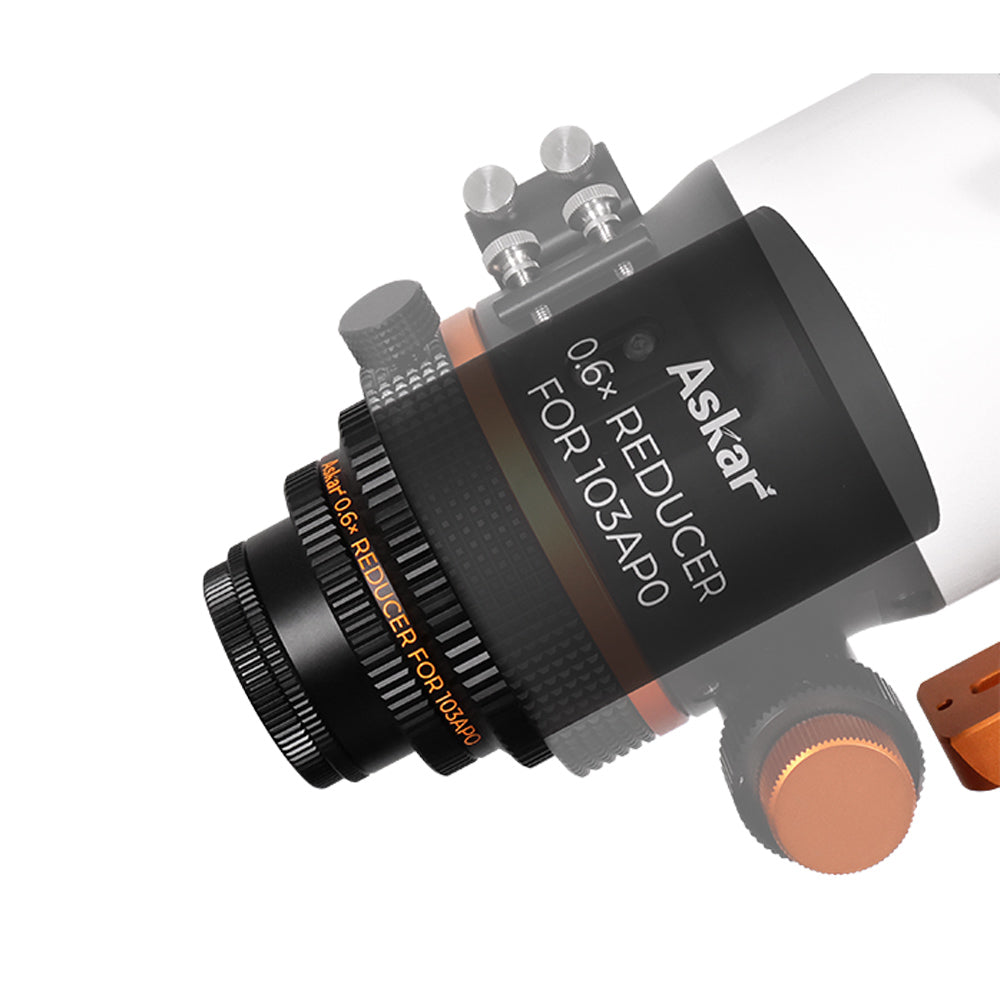

The reducer can be connected to the focuser of the Askar 103APO using an M84 x 1 male thread. On the camera side there are M68 x 1, M54 x 0.75 and M48 x 0.75 male threads. The flattener has an internal M48 x 0.75 thread to accept any standard 2" filter.
Specifications
| Optical design |
Quadruplet |
|
Focuser connection |
M84 x 1 male |
|
Camera connection |
M68 x 1 Male, M54 x 0.75 male, M48 x 0.75 male |
|
Backfocus distance |
55 mm from base of M48 thread, 73 mm from M54 thread, 82 mm from M68 thread |
|
Length |
115 mm |
|
Weight |
980 gr |
|
Outer diameter |
72 mm |
|
SKU |
ASA-103APOX0.6 |
Downloads
 Instruction manual
|
Gallery
NGC7000 by Chong Yang | Askar 103APO + 0.6x reducer, ZWO ASI2600MC Pro.
NGC7000 by Drew Evans | Askar 103APO + 0.6x reducer, ZWO ASI2600MC Pro.
