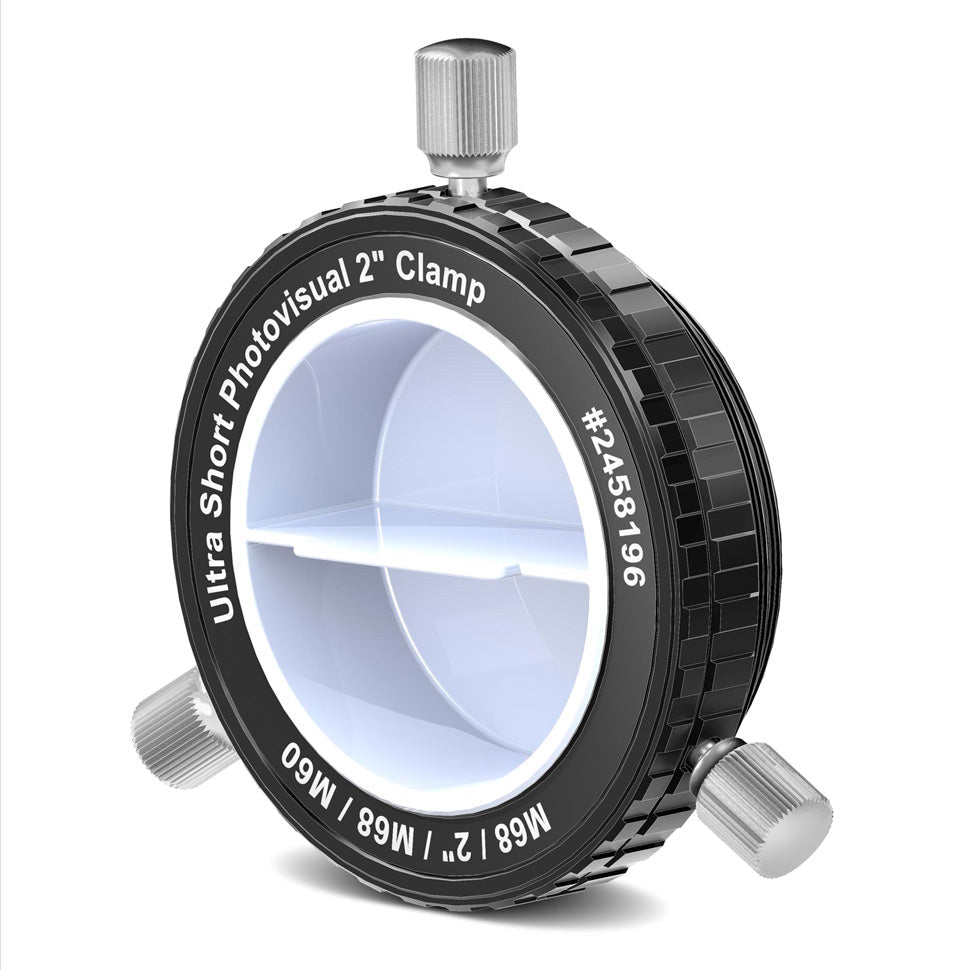

BAADER ULTRA SHORT CLAMP 2"

$149.00 AUD
SKU: BA2458196

Baader Planetarium

  • 2" Barrel
  • M60 x 0.75 Male
  • M68 x 1 Male
  • Optical thickness: 12 - 17.4 mm

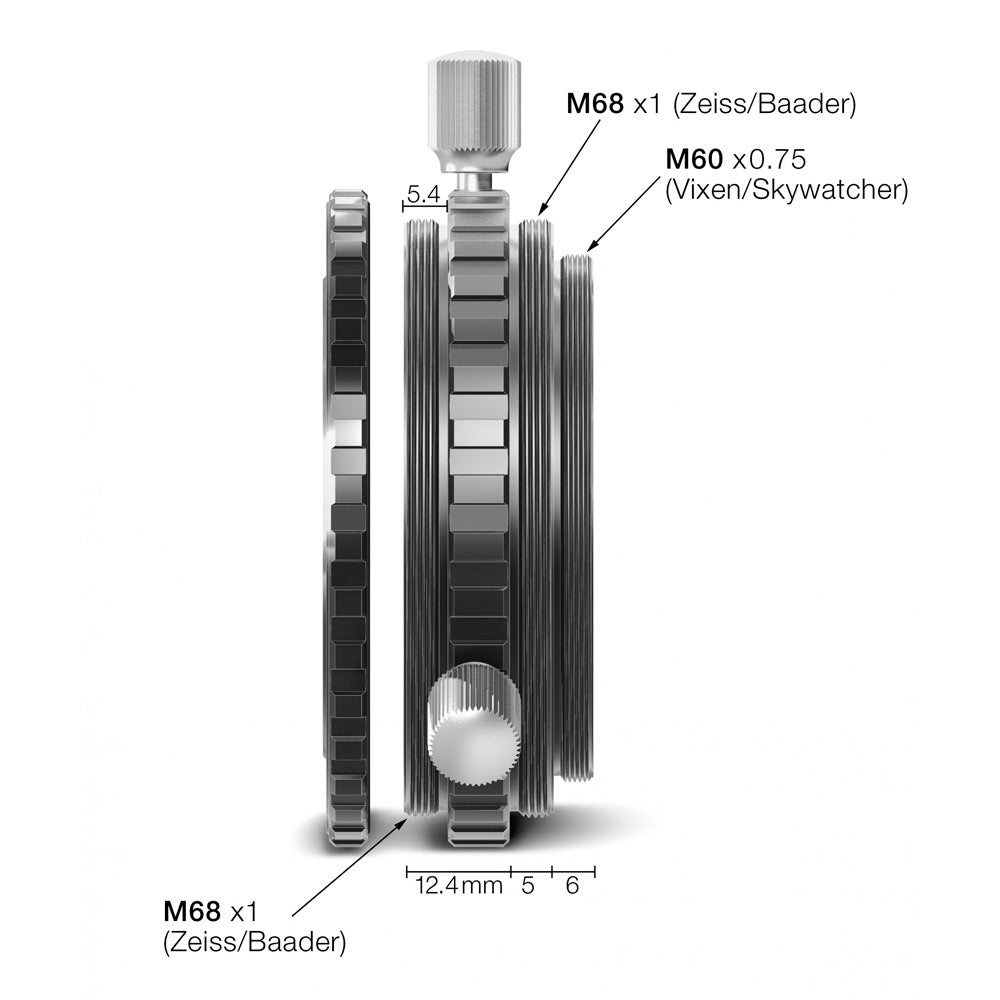

The Baader Ultra Short 2" clamp securely holds 2" eyepieces and accessories with brass pressure rings. The three clamping screws allow precise centering of eyepieces and cameras. Both sides of the clamp are equipped with M68 x 1 male threads as well as an M60 x 0.75 thread on the telescope side for some Sky-Watcher and Vixen focusers. It has an optical length of only 12mm when using the M68 thread or 17.4mm with using the M60 thread.

This adapter is natively compatible with all Baader Steeltrack and 3.5" Hyperion focusers.



Optical length
 12 mm from M68 thread, 17.4 mm from M60 thread
Clear aperture
 50.8 mm (2")
Outer diameter
 75 mm
Connection telescope side M68 x 1, M60 x 0.75
Connection eyepiece side 2" with 3 clamping screws
Weight 140 g
SKU BA2458196
