TOUPTEK IMX455 SKYEYE 62AC PRO CAMERA [COLOUR]

$6,449.00 AUD
SKU: TT-SkyEye62AC

ToupTek

6.2 FPS

16-bit

35.95 x 23.99 mm

3.76 µm

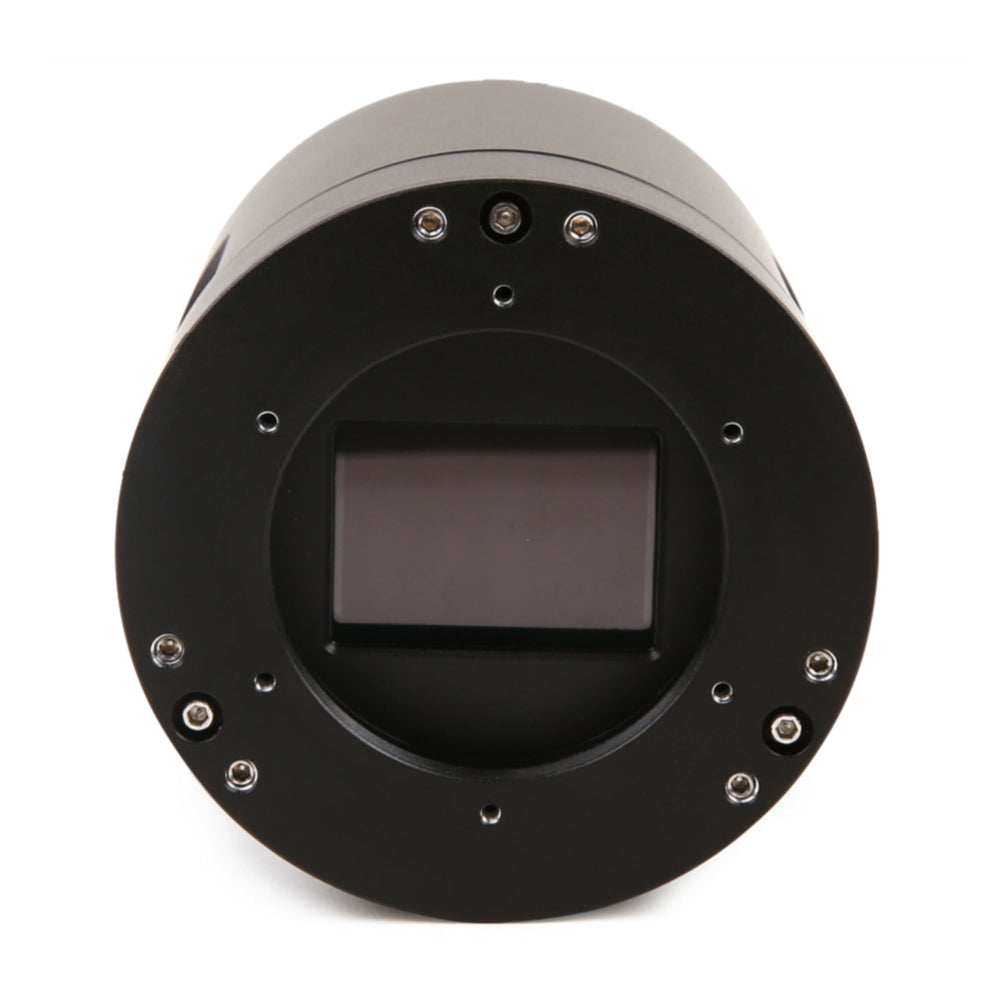

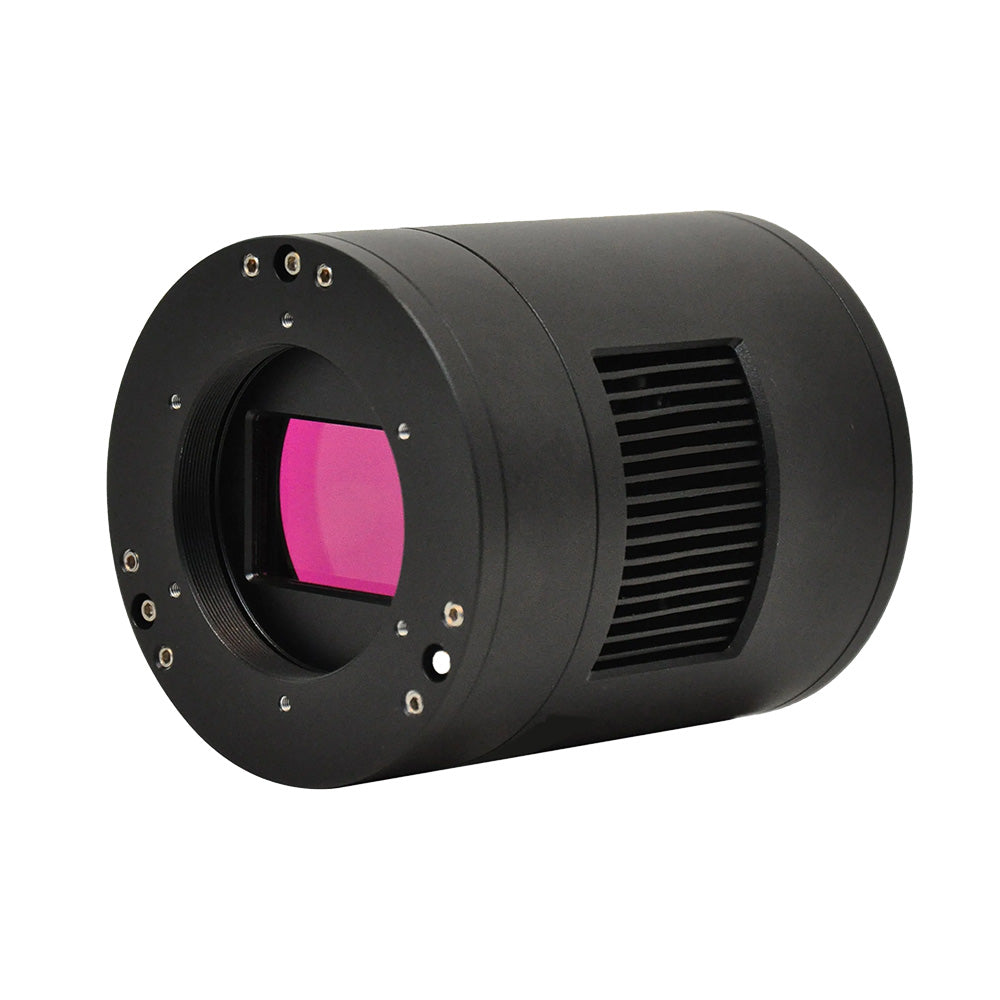

The ToupTek SkyEye 62AC IMX455C PRO Colour is a cooled astronomy camera using the Sony IMX455 full-frame 16-bit back-illuminated CMOS sensor. With a quantum efficiency of >80%, read noise as low as 0.89e- and 3.76µm pixels, the SkyEye 62AC is a professional deep sky camera for a wide range of telescopes.





The camera features 3.76µm pixels and a high resolution of 61MP. The large full-well capacity of 51ke- means you can capture faint targets without overexposing stars. The SkyEye 62AC is equipped with 5Gbps USB 3.0 connectivity and 512MB of DDR3 memory resulting in fast transfer speeds and reliability.





The ToupTek SkyEye 62AC has zero amp glow, even at high gain and over long exposure times. The below image shows two 5-minute exposures at 20°C with different cameras. The ToupTek image on the right shows no visible amp-glow. Combined with its low dark current and powerful TEC cooling to -35°C below ambient, the camera is capable of teasing out fine details of faint nebulae.





The SkyEye 62AC features a built-in dew heater around the protective window with 4 levels of adjustable heating power. The camera includes an integrated two port USB 2.0 hub, allowing you to connect guide cameras, electronic focusers, filter wheels and other accessories.




Sensor

Full-frame CMOS Sony IMX455 colour

Resolution

61 megapixels 9568 x 6380

Pixel size

3.76 µm

Sensor size

35.98 mm x 23.99 mm (43.3 mm diagonal)

Quantum efficiency

>80%

Exposure range

TBD

Read noise

0.89 e-

Full well capacity

51,000 e-

Bit rate

16 bit

Speed

6.2 fps in 8-bit full resolution

Shutter type

Rolling shutter

Cooling

ΔT of 35°C

Memory buffer

512MB DDR3

ROI

Supported

Compatibility

Windows, Mac, Linux

Protecting window

AR coated

Ports

USB 3.0 + USB 2.0 hub

Back focus

17.5 mm

Connections

M54 x 0.75

Dimensions

Ø 89 mm; ↨ 103 mm

Weight

TBD

Power supply

12V 3 A  (2.1×5.5 mm  connector)

SKU

TT-SkyEye62AC





  • Camera body
  • AC adapter
  • USB 3.0 cable (1.5 metres)
  • 21mm M54 male - M48 female adapter
  • 16.5mm extender M48 male - M48 female
  • M48 to M42 step up ring
  • Wrench
