TOUPTEK IMX290C GUIDE CAMERA [COLOUR]
ToupTek
18 FPS
12-bit
5.57 x 3.13 mm
2.9 µm
TOUPTEK IMX290C GUIDE CAMERA [COLOUR] is backordered and will ship as soon as it is back in stock.
- Info
- Specifications
- Items included
- Downloads
- Reviews

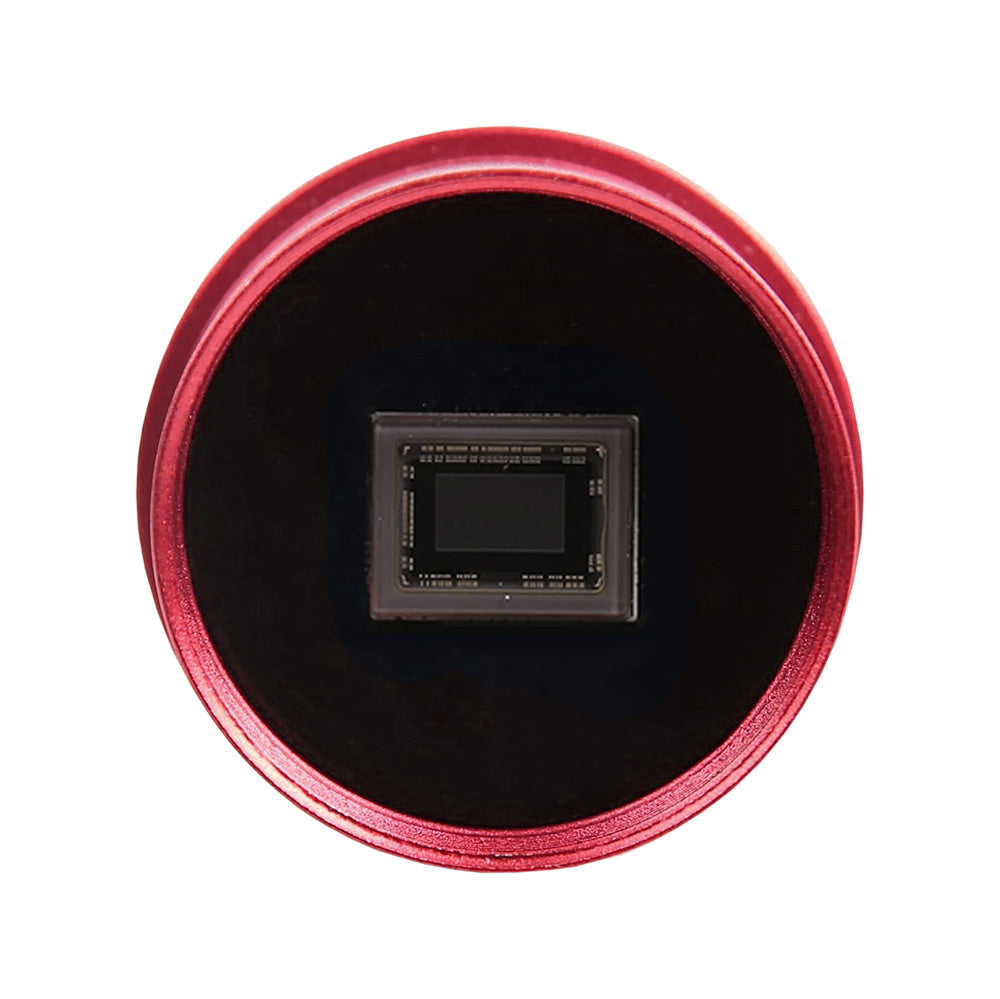

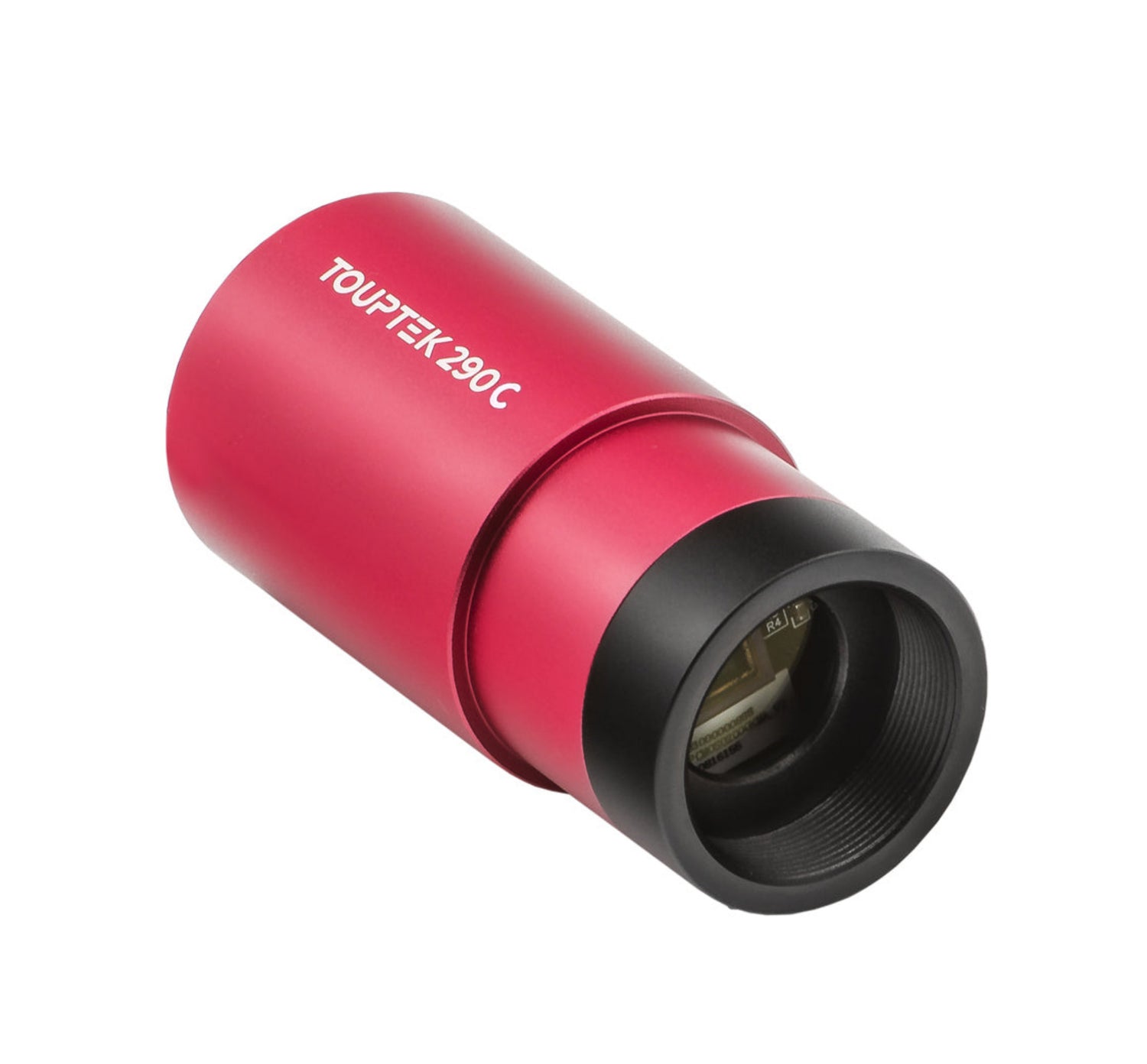

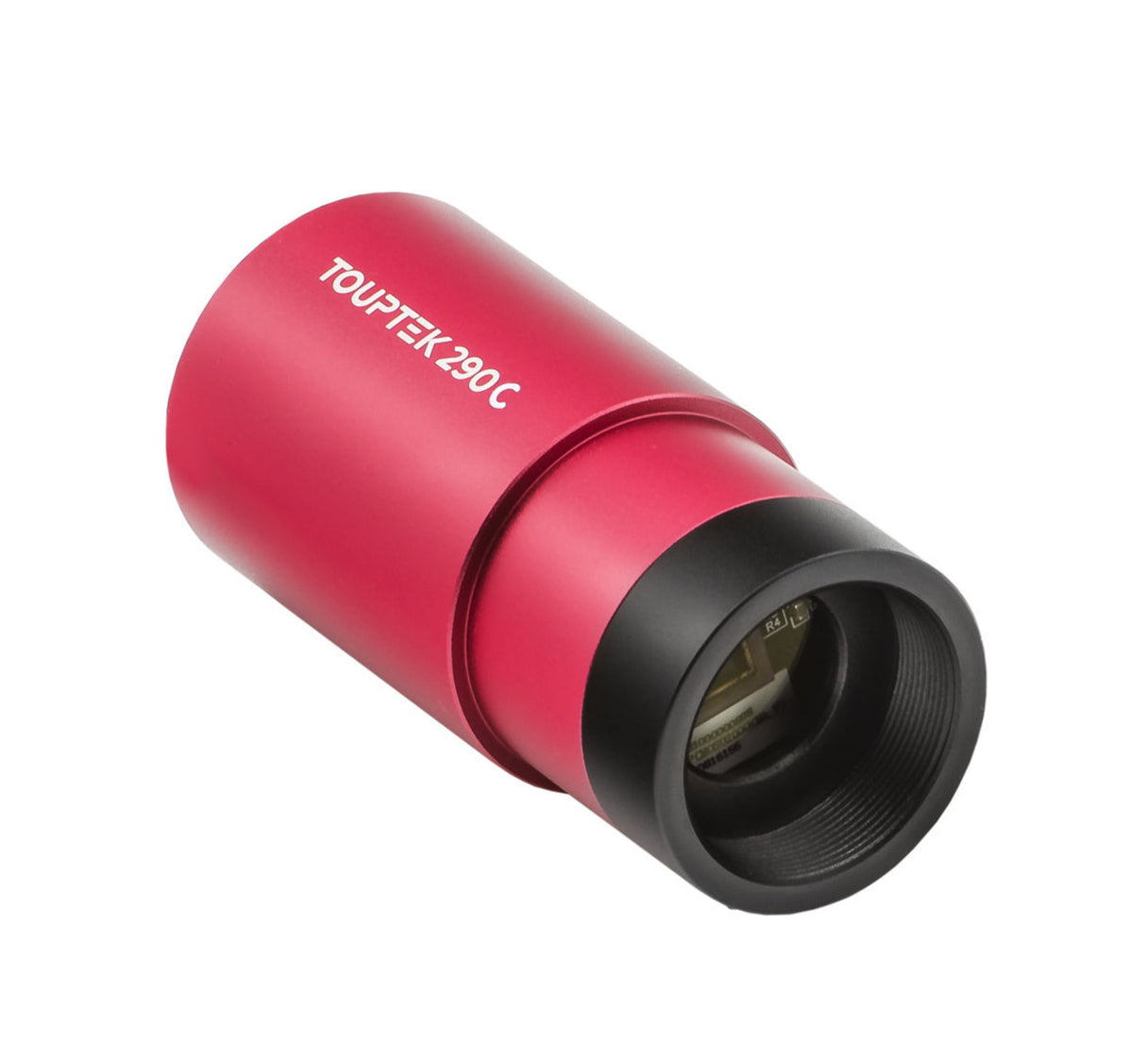

The ToupTek IMX290C Guide Colour is a 1.25" barrel size guide camera using the Sony IMX290 CMOS sensor. With a quantum efficiency of >81%, read noise as low as 0.53e- and 2.9µm pixels, the IMX290C is an excellent guide camera for both short guide scopes and off-axis guiders.
The IMX290C is equipped with USB 2.0 connectivity as well as a traditional ST-4 autoguiding interface. Its 1.25" barrel design makes it straightforward to use with most off-axis guiders (OAG not included).
| Sensor |
CMOS Sony IMX290 colour |
|
Resolution |
2 megapixels 1920 x 1080 |
|
Pixel size |
2.9 µm |
|
Sensor size |
5.57 mm x 3.13 mm (6.39 mm diagonal) |
|
Quantum efficiency |
>81% |
|
Exposure range |
0.105 ms - 1000 s |
|
Read noise |
0.53 e- |
|
Full well capacity |
11,200 e- |
|
Bit rate |
12 bit |
|
Speed |
18 fps |
|
Shutter type |
Rolling shutter |
|
ROI |
Supported |
|
Compatibility |
Windows, Mac, Linux |
|
Protecting window |
AR coated |
|
Ports |
USB 2.0 + ST-4 |
|
Back focus |
TBD |
|
Connections |
C-mount |
|
Dimensions |
Ø 35 mm; ↨ 62 mm |
|
Weight |
TBD |
|
Power supply |
USB 2.0 |
|
SKU |
TT-GPCMOS02000KPA |
- Camera body
-
USB 2.0 cable
- ST-4 cable (2 metres)
- 1.25" extender
